Motor Design

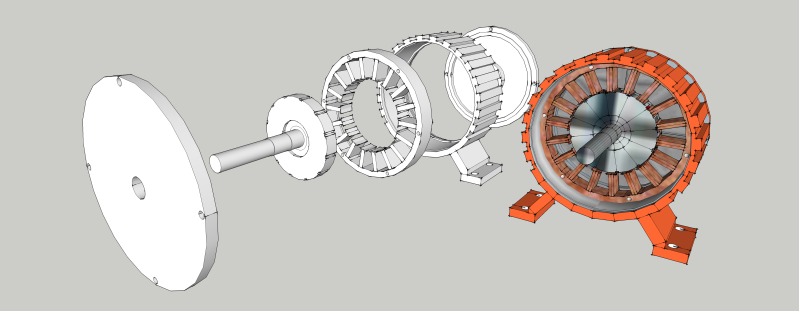

The figure on the right is a design of a water pump motor for 2 floor houses.

The design is composed of an 18 teeth stator configured in a delta winding configuration. It is a super-efficient brushless motor design reducing  the power consumption by 75% as compared to off the shelf AC pump motors.

Ceiling fan motor design modelled in Google Sketchup using surface modeling techniques.
